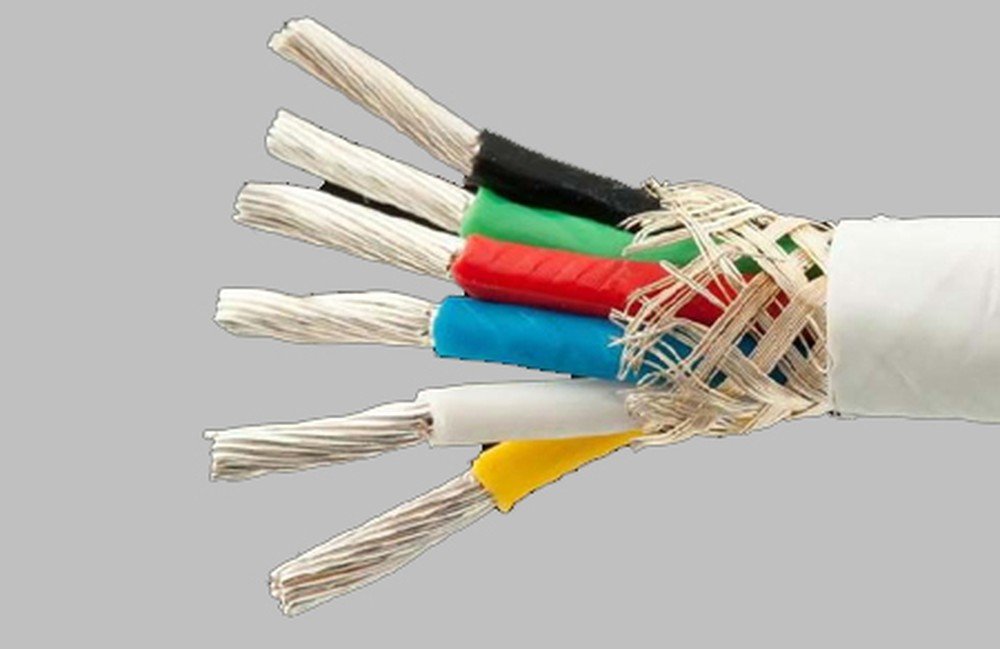

FEP Cable
FEP-insulated cable offering PTFE-like performance with better flexibility and clarity.
-65°C to 200°CUL 1332Flexible
Voltage300 / 600 V
Temperature-65°C to 200°C
StandardASTM D3159
Technical Specifications
| Construction | |
| Conductor | Tinned / silver-plated stranded copper |
| Conductor size range | 0.05 – 95 sq.mm |
| Number of cores/pairs | 1 – multicore |
| Insulation | FEP (Fluorinated Ethylene Propylene) |
| Inner sheath | N/A |
| Shielding/screen | Cu braid (optional) |
| Armour | Unarmoured |
| Outer sheath | FEP |
| Ratings & Standards | |
| Voltage grade | 300 / 600 V |
| Temperature rating | -65°C to 200°C |
| Applicable standards | ASTM D3159, UL 1332 |
| Special properties | Better flex life than PTFE, low moisture absorption, transparent jacket option |
Applications
Medical device wiring
Data & signal cables in harsh environments
Aerospace instrumentation
Precision electronic assemblies
