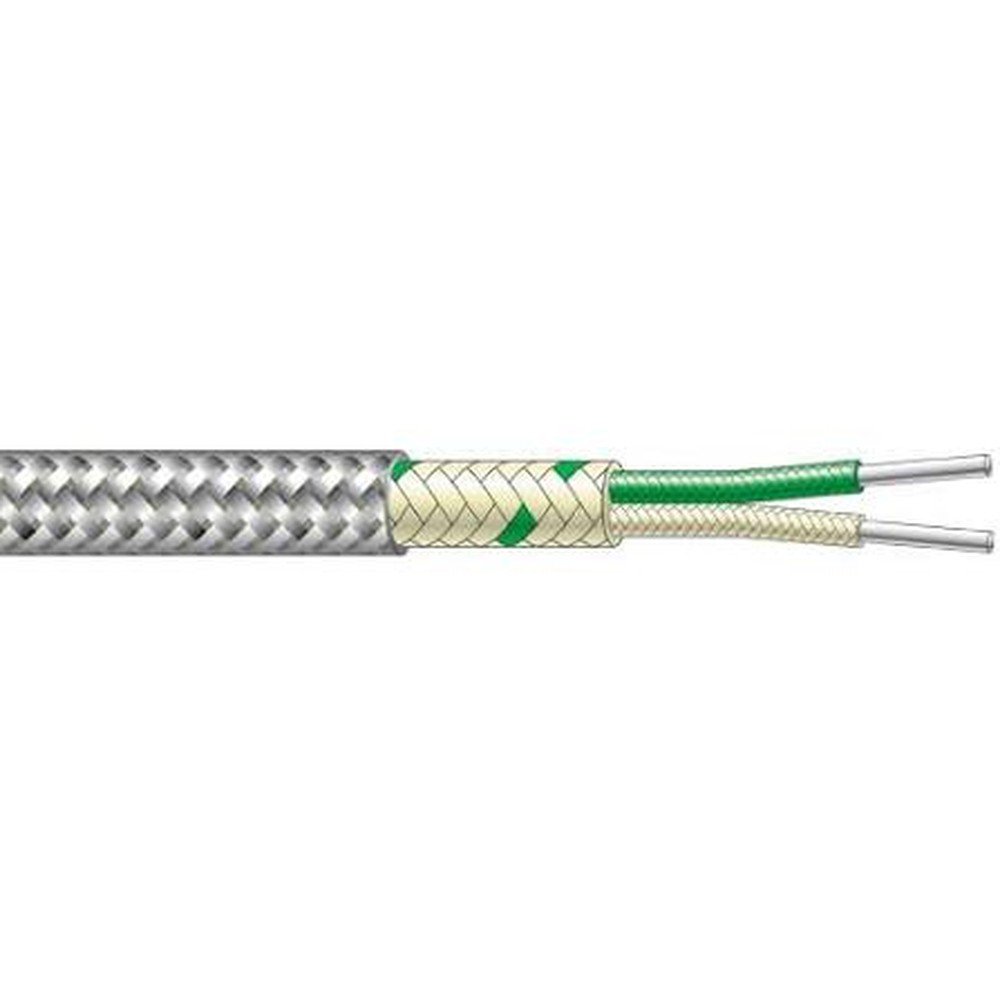

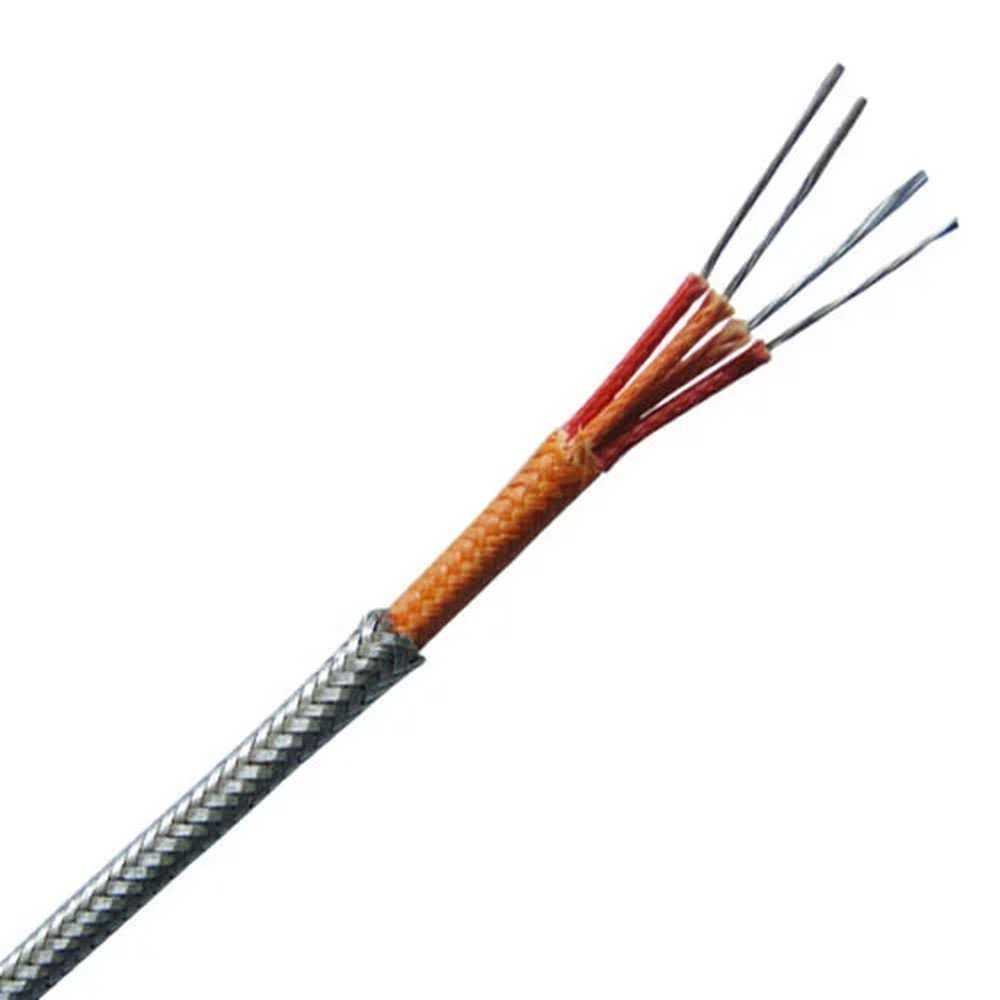

Fibre Glass SS Braided Cable
Glass-fibre insulated cable with a stainless steel wire braid for continuous service at extreme temperatures.
Up to 500°CSS braidedGlass fibre insulated
Voltage300 / 600 V
Temperature180°C continuous (copper conductor) up to 500°C (nickel-plated conductor grade)
StandardIS 6380
Technical Specifications
| Construction | |
| Conductor | Bare copper / nickel-plated copper (per temperature class) |
| Conductor size range | 0.5 – 25 sq.mm |
| Number of cores/pairs | 1 – multicore (per requirement) |
| Insulation | Multiple layers of braided glass-fibre yarn (mica tape wrap for the highest temperature class) |
| Inner sheath | N/A |
| Shielding/screen | N/A |
| Armour | Stainless steel (SS) wire braid, overall |
| Outer sheath | SS braid is the outer layer (varnished glass-braid finish available) |
| Ratings & Standards | |
| Voltage grade | 300 / 600 V |
| Temperature rating | 180°C continuous (copper conductor) up to 500°C (nickel-plated conductor grade) |
| Applicable standards | IS 6380, BS 6141 |
| Special properties | SS braid adds mechanical & abrasion protection beyond a plain glass braid; conductor material selects the achievable temperature class |
Applications
Furnace, kiln & oven wiring
Foundry & steel plant heating elements
Exhaust & engine-bay wiring on heavy equipment
Heater & thermocouple lead protection
