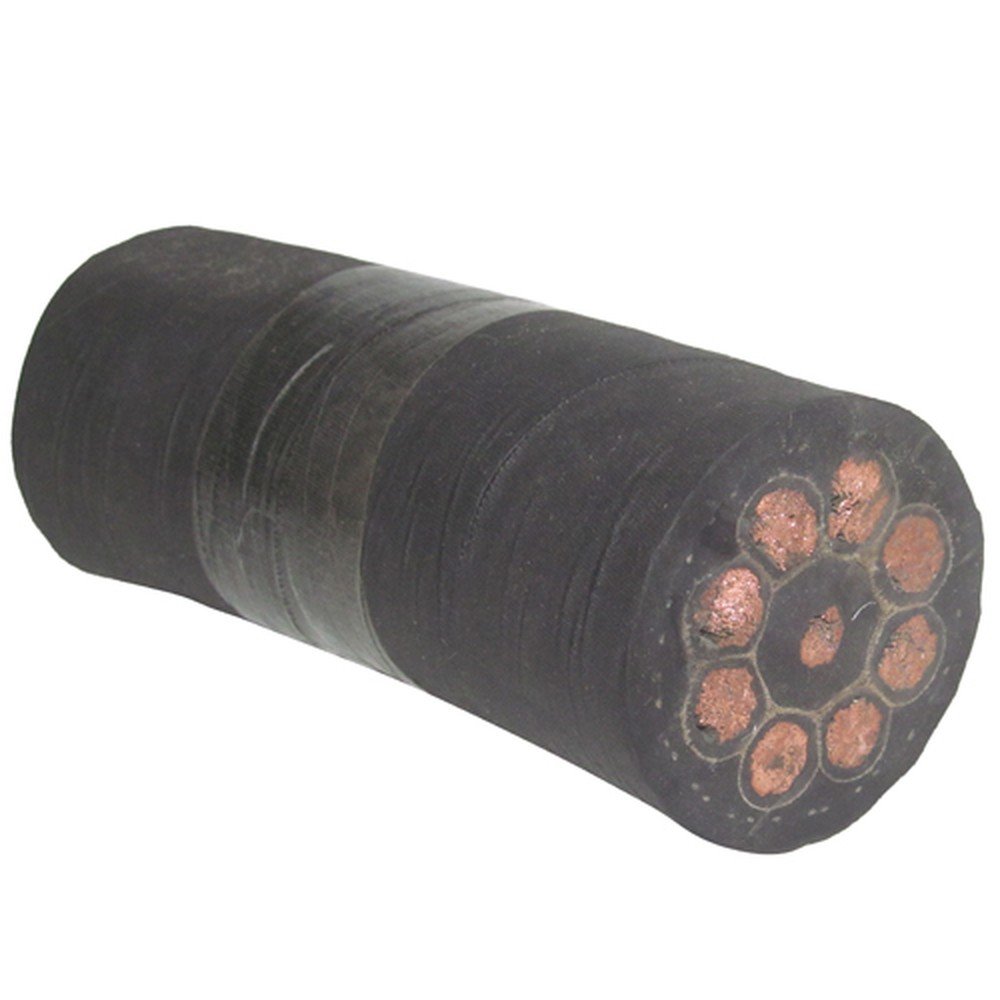

Composite Cable
Multi-function rubber cable combining power, pilot/control and earth cores in a single jacket to cut cable runs on mobile equipment.
Power+control combinedHOFRIS 9968
Voltage1.1 kV
Temperature-25°C to 90°C, rated for continuous flexing
StandardIS 9968 (Part 1)
Technical Specifications
| Construction | |
| Conductor | Extra flexible stranded tinned copper, Class 5 (IS 8130) |
| Conductor size range | 1.5 – 300 sq.mm (power cores); 1.5 sq.mm typical (pilot/control cores) |
| Number of cores/pairs | 3 power + 1 pilot + 1 earth (5-core) or custom multi-core combinations |
| Insulation | EPR (Ethylene Propylene Rubber) |
| Inner sheath | Extruded rubber bedding |
| Shielding/screen | N/A (screened pilot core on request) |
| Armour | Unarmoured (braided reinforcement on request) |
| Outer sheath | Chlorosulphonated Polyethylene (CSP) – HOFR (heat, oil & flame retardant) |
| Ratings & Standards | |
| Voltage grade | 1.1 kV |
| Temperature rating | -25°C to 90°C, rated for continuous flexing |
| Applicable standards | IS 9968 (Part 1), BS 6500 |
| Special properties | Combines power, control and earth cores in a single run; HOFR-rated CSP sheath for oil, heat & flame exposure |
Applications
EOT & gantry crane power + control runs
Steel mill & material handling equipment
Construction & port cranes
Wind turbine & nacelle cabling
